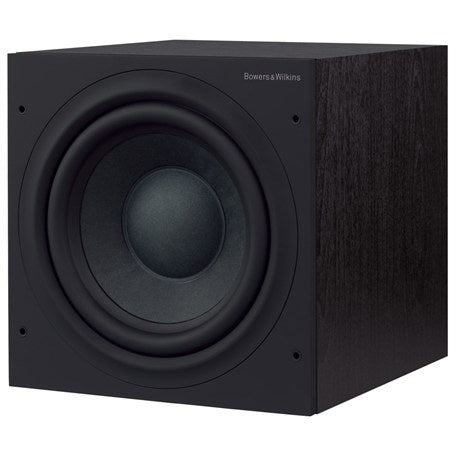

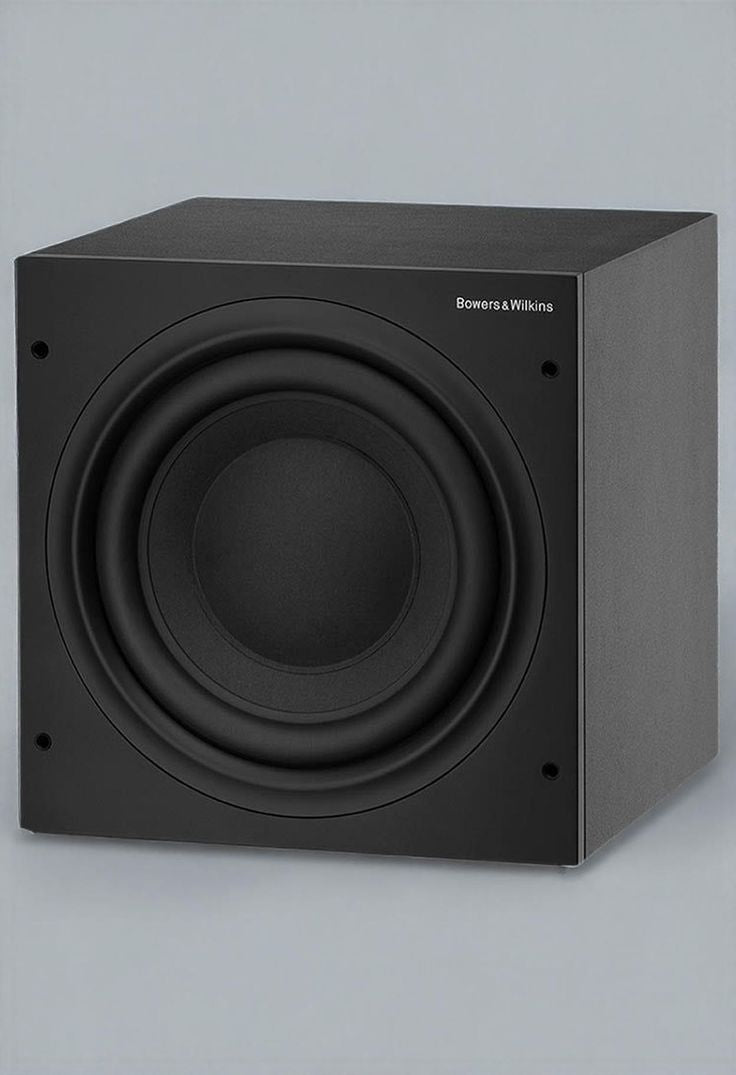

Bowers and Wilkins ASW610XP 500 Watts Subwoofer
Bowers and Wilkins ASW610XP 500 Watts Subwoofer
Couldn't load pickup availability
ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theater system for larger rooms.
Warranty:
1-year manufacturer's warranty
Benefits:
Tuned for powerful bass
A big driver isn't enough: ASW610XP combines paper pulp, Aramid fiber, and resin for stiffness and accuracy.
All the power you’ll need
ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation.
Technical Specifications:
|
Size & weight |
|
|
Dimensions |
Height: 325mm (12.8in) not including feet or spikes 337mm (13.3in) including feet 353mm (13.9in) including spikes Width: 325mm (12.8in) Depth: 348mm (13.68in) not including grilles 375mm (14.8in) including grilles and controls |
|
Net weight |
18.65kg (41.12 lb) |
|
A table header is decorative |
|
|
Technical details |
|
|
Technical features |
Input level (line-in) Input level (speaker in) Low-pass filter frequency (line in only) Low-pass filter bypass Bass extension Bass roll-off alignment Auto sense on / standby Phase switch |
|
Description |
The active closed-box subwoofer system |
|
Drive units |
ø250mm (10 in) Paper / Aramid fibre cone long-throw |
|
Frequency range |
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A) |
|
Frequency response |
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A) |
|
Bass extension |
-6dB at 18Hz (position A) -6dB at 23Hz (position B) -6dB at 28Hz (position C) |
|
Amplifier power output |
500W |
|
Power consumption |
98W / 1W standby |
|
Input impedance |
33kΩ |
|
Signal / Noise |
>80dB |
|
Inputs |
Line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
|
A table header is decorative |
|
|
Finishes |
|
|
Cabinet finishes |
Black White |
|
Grille finishes |
Black Grey |
